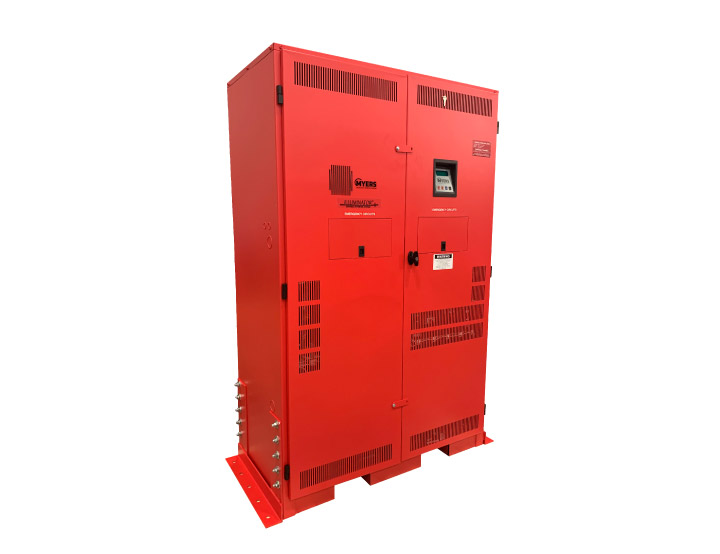

Illuminator IE-H OSHPD (LED & Non-HID Loads) – 1.5kVA, 2.25kVA, 3.0kVA, 3.75kVA, 5.0kVA, 6.0kVA, 8.0kVA, 10.0kVA, 12.5kVA & 16.7kVA

Myers EPS Illuminator E-H is an OSHPD-rated fast transfer central inverter system for all lighting & motor loads. The system features a single-cabinet design for units up to 16.7kVA/kW, reducing footprint and installation costs. With a wealth of advanced communications features, the Illuminator E-H offers unmatched convenience.

Capacity and Dimensions

1.5kVA/kW — 5.0kVA/kW: 47″ H x 36″ W x 25″ D
6.0VA/kW — 16.7kVA/kW: 76″ H x 55″ W x 25″ D

Standard Features

Withstand Seismic Rating Based on Shaker Table Testing
98% Efficient Typical
Automatic Event, Test, and Alarm Log
User Programmable With Password Protection
Input Circuit Breaker
RS232 Communications Port
Space-Saving Design
Maximum Transfer Time 50ms
NFPA 101 Self Testing and Data Logging
Code Compliant: 90 Min. Runtime
65 KAIC Input Rating
NEMA Type 1 Cabinet

Optional Features

Enhanced Communications
- Expanded Building Management Protocols
- BACnet or Modbus Communications Interface
- NEW IoT Connect Cloud Software
Internal or External Maintenance Bypass
Summary Alarm
Output Circuit Breakers
Status Monitoring & Summary Form C Contacts
Normally Off Output with Time Delay
Output Trip Alarms
Factory Startup & Training
Extended Maintenance & Factory Warranty
